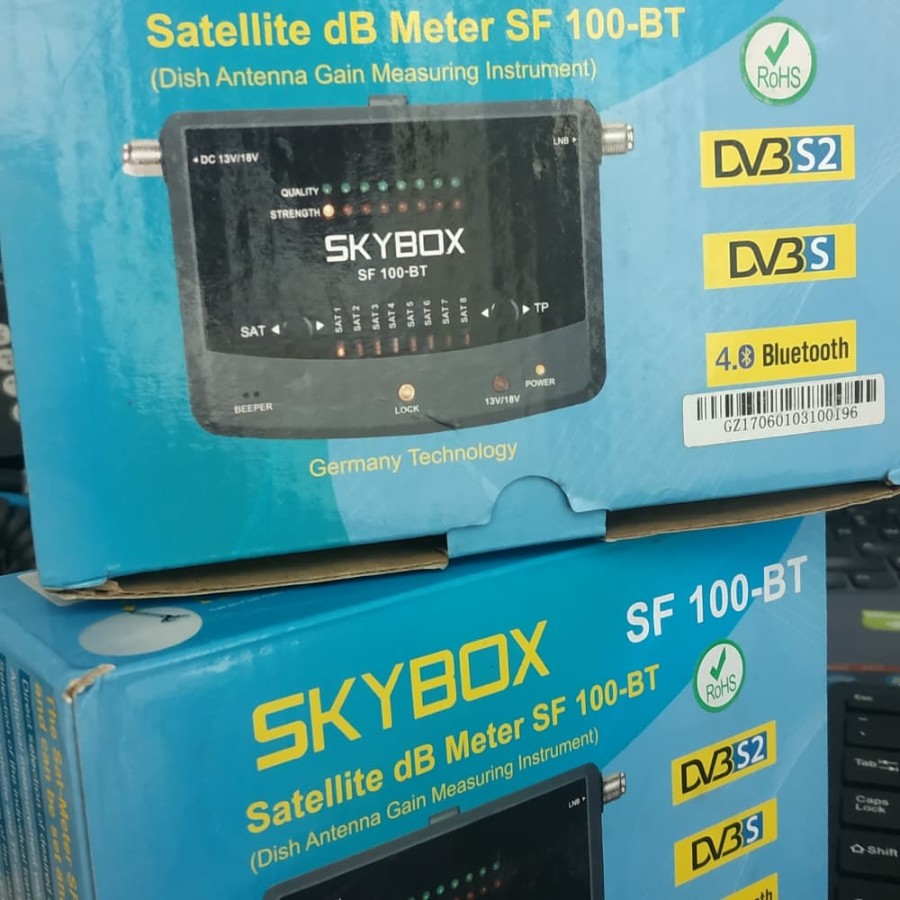

SATFINDER BLUETOOTH SKYBOX SF 100-BT

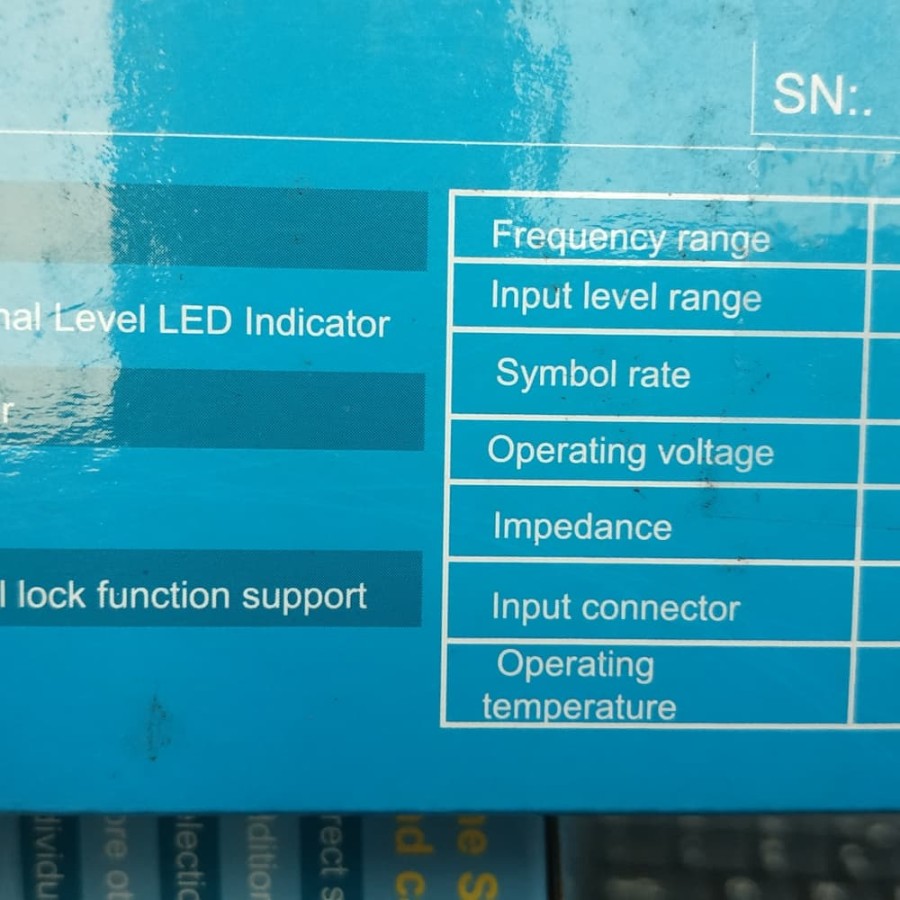

Technical Data:
Frequency Range : 950-2150MHz
Operating Voltage : 13 / 18V DC
Demodulation : QPSK / 8PSK / 16APSK / 32APSK
Impedance : 75 Ohm
Symbol Rate : 45 Msps ( QPSK,8PSK,16APSK) 37 Msps ( 32APSK)
Code rate : 1/2, 2/3, 3/4, 3/5, 5/6, 7/8, 8/9, 9/10,
Input Level Range : 44-110dBuV
Frequency range and max.
Transmitting power of the : 2402-2480 MHz
Bluetooth Interface : 2,5mW / 4 dBM
Preset Satellite Positions:
SAT 1 Palapa D
SAT 2 Telkom
SAT 3 Asiasat 7
SAT 4 Asiasat 5
SAT 5 Chinasat 6B
SAT 6 Chinasat 11
SAT 7 SES 7
